Down hole equipment

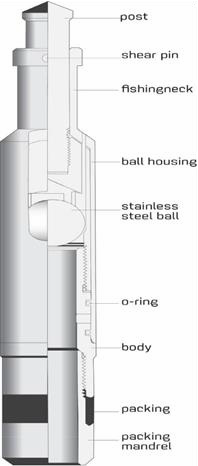

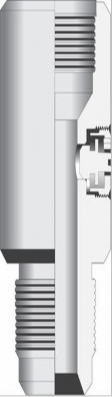

Downhole Choke

The Type A Circulating Plug is a removable check valve that can be installed below a perforation. It may also be used to test the tubing from above.

Specifications

Size

1.875”

2.313”

2.750”

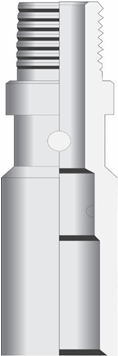

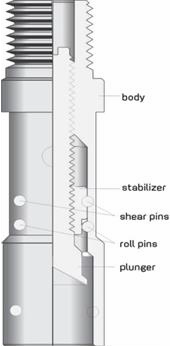

Type B/Type H Equalizing Sub

The Type B and H Equalizing Subs allow an equalization of a pressure differential across a locking mandrel so that the locking mandrel can be safely and properly retrieved. It also provides a means to allow fluid to bypass around a locking mandrel as it is lowered into a landing nipple. A running prong and pulling prong are needed to equalize these subs. The prong lifts a spring loaded equalizing dart of “seat” which will allow either fluid bypass or pressure equalizing. The Type B and H subs are identical except the internal diameters of the H subs are larger than the B subs.

Type B Specifications

Size

2"

2½"

3"

O.D.

1.750"

2.150"

2.625"

I.D.

0.531"

0.719"

1.156"

Thread Size

1 3/16"-14

19/16"-12

2"-12

Flow Area (sq. in.)

0.003"

0.003"

0.003"

Type H Specifications

Size

1½"

2"

2½"

3"

O.D.

1.418"

1.750"

2.150"

2.710"

I.D.

0.563"

0.688"

0.875"

1.500"

Thread Size

7/8"-14

1 3/16"-14

1 9/16"-12

2"-12

Flow Area (sq. in.)

0.003"

0.003"

0.003"

0.003"

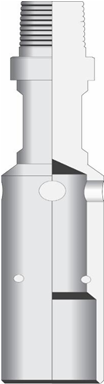

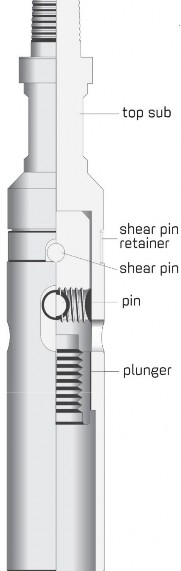

WPSX/WPSR Equalizing Sub

The equalizing Subs are used as a means of equalizing pressure differentials across a flow control device. They are designed to be used with large bore mandrels such as WPSX Locking Mandrel. The maximum O.D. ring on the WPSX Equalizing Sub serves as a no-go ring for type WPSX Locking Mandrels. WPSR Equalizing Subs are available for use with WPSR Locking Mandrels.

X Specifications

Size

1.875"

2.313"

2.750"

2.813"

Max

1.870"

2.305"

2.745"

2.745"

Min I.D.

0.875"

1.218"

1.625"

1.625"

R Specifications

Size

1.710"

1.781"

1.875"

2.125"

2.188"

2.313"

2.562"

Max

1.706"

1.776"

1.870"

2.120"

2.183"

2.308"

2.557"

Min I.D.

0.625"

0.780"

0.780"

0.780"

1.000"

1.000"

1.190"

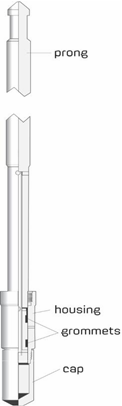

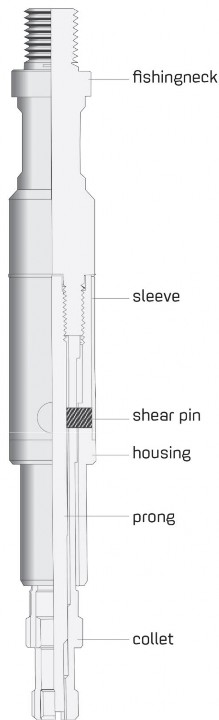

WPSPX Plug (Grommet Type)

The Type WPSPX Plug is a positive plug used in conjunction with the Type WPSX Locking Mandrel to hold pressure from above and below in a Type WPSX Landing Nipple. This plug might be used to test tubing or to plug tubing to perform repairs or replacement of surface equipment. Equalization is achieved by pulling the equalizing prong from the plug assembly

Specifications

Size

1.500"

1.625"

1.875"

2.313"

2.750"

2.813"

Fishingneck O.D.

1.000"

1.000"

1.375"

1.375"

1.375"

1.375"

No Go O.D

1.490"

1.615"

1.865"

2.300"

2.740"

2.795"

Thread Connection

1 1/8"-16

1 1/8"-16

13/8"-14

3

1 /4"-12

1

2 /4"-12SLB

1

2 /4"-12SLB

Prong Running

Tool

1 3/8” JDC

3 1 /8" JDC

2" JDC

2" JDC

2" JDC

2" JDC

Prong Pulling Tool

1 1/4" SB

1 1/4" SB

2" SB

2" SB

2" SB

2" SB

qualizing Flow Area

(sq. in.)

0.049"

0.049"

0.070"

0.175"

0.175"

0.175"

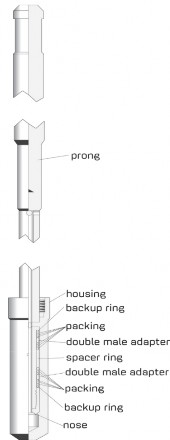

WPSPX/WPSPR Plug (Packing Type)

The Type WPSPX Plug is a positive plug used in conjunction with the Type WPSX Landing Nipple. This plug might be used to test tubing or to plug tubing to perform repairs or replacement of surface equipment. Equalization is achieved by pulling the equalizing prong from the plug assembly.

The Type WPSPR Plug is a positive plug used in conjunction with the Type WPSR Landing Nipple. This plug might be used to test tubing or to plug tubing to perform repairs or replacement of surface equipment. Equalization is achieved by pulling the equalizing prong from the plug assembly.

WPSPX Specifications

Size

1.500"

1.625"

1.875"

2.313"

2.750"

2.813"

Fishingneck O.D.

1.000"

1.000"

1.375"

1.375"

1.375"

1.375"

No Go O.D.

1.490"

1.615"

1.865"

2.300"

2.740"

2.800"

Thread Connection

1

1 /8"-16

1

1 /8"-16

3

1 /8"-14

3

1 /4"-12

1

2 /4"-12SLB

1

2 /4"-12SLB

Prong Running Tool

3

1 /8" JDC

3

1 /8" JDC

2" JDC

2" JDC

2" JDC

2" JDC

Prong Pulling Tool

1 1 /4" SB

1 1 /4" SB

2" SB

2" SB

2" SB

2" SB

Equalizing Flow Area (in2)

0.049"

0.049"

0.070"

0.175"

0.175"

0.175"

WPSPR Specifications

Size

1.710"

1.781"

1.875"

2.125"

2.188"

2.313"

2.562"

Fishingneck O.D.

1.187"

1.187"

1.187"

1.187"

1.375"

1.375"

1.375"

No Go O.D.

1.700"

1.770"

1.865"

2.115"

2.175"

2.300"

2.550"

Thread Connection

1 1/8"-16

1 3/8"-14

1 3/8"-14

1 3/8"-14

1 3/4"-12

1 3/4"-12

2"-12SLB

Prong Running Tool

11/2" JDC

11/2" JDC

11/2" JDC

11/2" JDC

2" JDC

2" JDC

2" JDC

Prong Pulling Tool

11/2" SB

11/2" SB

11/2" SB

11/2" SB

2" SB

2" SB

2" SB

Equalizing Flow Area

0.049"

0.049"

0.049"

0.049"

0.049"

0.049"

0.049"

WPSRR/WPSXX Plug

The Type WPSRR Plug is a positive plug used in conjunction with the type WPSRR Locking Mandrel to hold pressure from above and below in a Type WPSRR Landing Nipple. This plug might be used to test tubing or to plug tubing to perform repairs or replacement of surface equipment. Equalization is achieved by shifting an equalizing valve into the open position before the mandrel is unlocked.

The Type WPSXX Plug is a positive plug used in conjunction with the Type WPSXX Locking Mandrel to hold pressure from above and below in a Type WPSXX Landing Nipple. This plug might be used to test tubing or to plug tubing to perform repairs or replacement of surface equipment. Equalization is achieved by shifting an equalizing valve into the open position before the mandrel is unlocked.

RR Specifications

Size

1.710"

1.781"

1.875"

2.000"

2.125"

2.188"

2.313"

2.562"

No Go Sub

1.700"

1.770"

1.865"

1.990"

2.115"

2.175"

2.300"

2.550"

Min I.D.

0.625"

0.781"

0.781"

0.781"

0.781"

1.005"

1.005"

1.190"

Thread Connection

1 1/8"-16

1 3/8"-14

1 3/8"-14

1 3/8"-14

1 3/8"-14

1 3/4"-12

1 3/4"-12

2"-12SLB

Equalizing Flow Area (sq. in.)

0.049"

0.028"

0.028"

0.028"

0.028"

0.049"

0.049"

0.041"

XX Specifications

Size

1.500"

1.625"

1.875"

2.313"

2.750"

2.813"

No Go Sub

1.490"

1.615"

1.865"

2.300"

2.740"

2.800"

Min I.D.

0.625"

0.625"

0.875"

1.223"

1.630"

1.630"

Thread Connection

1 1/8"-16

1 1/8"-16

1 3/8"-14

1 3/4"-12

2 1/4"-12SLB

2 ¾"-12SLB

Equalizing Flow Area (sq. in.)

0.014"

0.049"

0.028"

0.014"

0.055"

0.055"

WPSR Pump Through Plug

The Type WPSR Pump Through Plug is used in conjunction with the Type X Locking Mandrel andthe Type X Equalizing Sub Assembly to hold pressure from below in a Type X Landing Nipple. The plug has pump through capabilities that would allow an operator to pump fluids into well bore.

Specifications

Size

2"

2½"

3"

Max O.D.

1.750"

2.000"

2.570"

Thread Connection

1 3/8"-14

1 ¾"-12

2¼"-12SLB

Flow Area (sq. in.)

0.371"

0.690"

1.107"

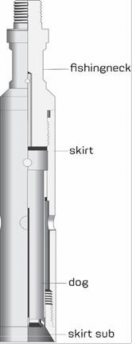

GG Pulling Tool

The GG Pulling Tool is a no releasable pulling tool primarily used to extract prongs from PS and PN Plugs.

Specifications

Size

2" X1"

2" X 1 3/16"

2" X 1 3/8"

Fishingneck O.D.

1.375"

1.375"

1.375"

Max O.D.

1.750"

1.750"

1.843"

Pin Connection

1 5/16"-10

1 5/16"-10

1 5/16"-10

Made Up Length

10.813"

8.813"

9.563"

Grabs (fishneck

1" FN

1 3/16" FN

1 3/8" FN

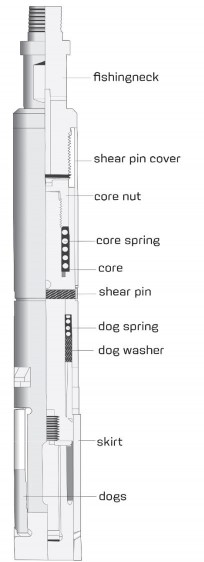

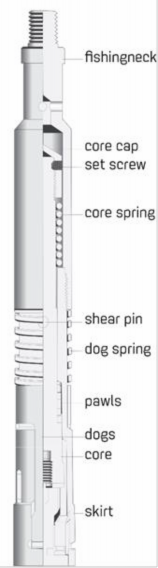

GS Pulling Tool

The GS Running/Pulling Tool is a shear down releasing tool used to run or pull subsurface devices which have internal fishingnecks.

Specifications

Size

1½"

2"

2½"

3"

Fishingneck O.D.

1.188"

1.375"

1.750"

2.313"

Max O.D.

1.469"

1.750"

2.160"

2.719"

Pin Connection

1 5/16"-10

1 5/16"-10

1 5/16"-10

1 1/16"-10

Bottom Connection

½"-13

½"-13

5/8"-11

5/8"-11

Shear Pin

3/16" X 1 7/32"

1/4" X 1 39/64"

¼" X 1 31/32"

¼" X 2 31/64"

Fishingneck Engages

1.062"

1.375"

1.812"

2.313"

Reach

1.656"

1.687"

1.625"

1.651"

Made Length

10.750"

11.625"

11.875"

12.125"

Set Screw

¼"-20 X ¼"

¼"-20 X ¼"

¼"-20 X ¼"

¼"-20 X 5/16"

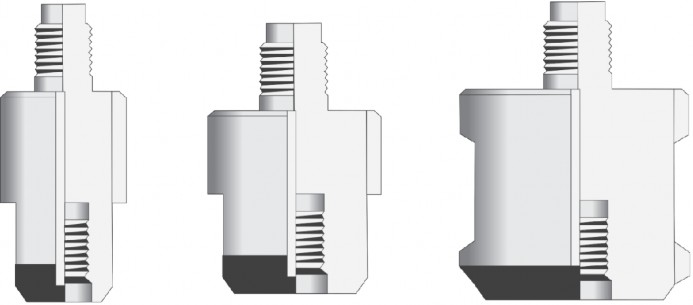

GS Pulling Tool Core Extensions

2” 2 ½” 3”



GR Adapter

The GR Adapter is used in conjunction with the GS Pulling Tool

to convert it into a “jar up to released” type tool.

Specifications

Size

1½”

2”

2½”

3”, 4”

Fishingneck O.D.

1.188”

1.375”

1.750”

2.313”

Pin Connection

15/16”-10

15/16”-10

15/16”-10

11/16”-10

Max O.D.

1.460”

1.813”

2.125”

2.725”

Shear Pin

” X 15/16”

5/16” X 1 11/16”

5/16” X 2"

3/8” X 2½”

Box Connection

15/16”-10

15/16”-10

15/16”-10

11/16”-10

Made Up Length

8.375”

8.375”

8.875”

9.313”

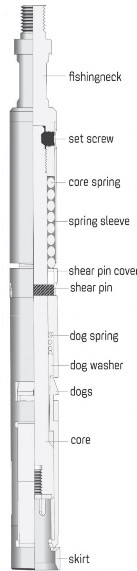

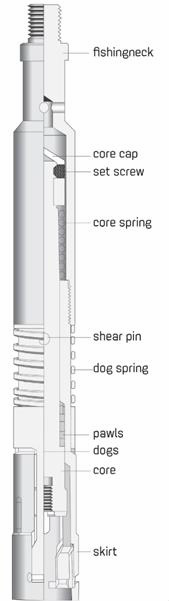

JD Pulling Tool

The J Series Pulling Tool, through minor component changes, is a shear down or shear up releasing tool used in pulling subsurface devices, which have external fishingnecks. To accommodate the many different types of devices, the core of the J Series Tool is made in various lengths and can be changed in the field.

JD Specifications

Size

1¼”

13/8”

1½”

Fishingneck O.D.

1.188”

1.188”

1.188”

Pin Connection

15/16”-10

15/16”-10

15/16”-10

Max O.D.

1.290”

1.375”

1.422”

Bottom Connection

¼”-20

¼”-20

½”-13

Shear Pin

3/16” X 1 9/64”

3/16” X 1 9/64”

3/16” X 1 11/64”

Fishingneck

0.875”

1.000”

1.187”

Reach

JDC-1.937” JDS-2.688”

JDC-1.875” JDS-2.625”

JDC-1.093” JDS-1.843”

Made Up Length

12.063”

12.156”

13.063”

Set Screw

NONE

NONE

¼”-20 X 3/16”

Size

15/8”

2”

2½”

3”

Fishingneck O.D.

1.188”

1.375”

1.375”

1.750”

Pin Connection

15/16”-10

15/16”-10

15/16”-10

15/16”-10

Max O.D.

1.625”

1.859”

2.250”

2.796”

Bottom Connection

½”-13

½”-13

½”-13

½”-13

Shear Pin

3/16” X 1 11/64”

3/16” X 1 31/64”

3/16” X 1 27/32”

3/16” X 1 11/32”

Fishingneck

1.187”

1.375”

1.750”

2.313”

Reach

JDC-1.093” JDS-1.843”

JDC-1.437” JDS-2.250”

JDC-1.312” JDS-2.187”

JDC-1.437” JDS-2.125”

Made Up Length

13.000”

14.391”

14.891”

15.000”

Set Screw

¼”-20 X 3/16”

5/16”-18 X ¼”

5/16”-16 X ¼”

3/8”-16 X 3/8”

JU Pulling Tool

The J Series Pulling Tool, through minor component changes, is a shear down or shear up releasing tool used in pulling subsurface devices, which have external fish-ingnecks. To accommodate the many different types of devices, the core of the J Series Tool is made in various lengths and can be changed in the field.

JU Specifications

Size

1 ¼”

1 3/8”

1 1/2”

Fishingneck O.D.

1.188”

1.188”

1.188”

Pin Connection

15/16”-10

15/16”-10

15/16”-10

Max O.D.

1.290”

1.375”

1.422”

Bottom Connection

¼”-20

¼”-20

½”-13

Shear Pin

3/16” X 19/64”

3/16” X 19/64”

3/16” X 1 11/64”

Fishingneck Engages

0.0875”

1.000”

1.187”

Reach

JUC-1.937” JUS-2.688”

JUC-1.000” JUS-2.625”

JUC-1.093” JUS-1.843”

Made Up Length

12.063”

12.156”

13.063”

Set Screw

1/4" -20X3/8 ”

1/4" -20X3/8 ”

1/4"-20X3/8 ”

JU Specifications

Size

1 5/8”

2”

2½”

3”

Fishingneck O.D.

1.188”

1.375”

1.375”

1.750”

Pin Connection

15/16”-10

15/16”-10

15/16”-10

15/16”-10

Max O.D.

1.625”

1.859”

2.250”

2.797”

Bottom Connection

½”-13

½”-13

½”-13

5/8”-11

Shear Pin

3/16” X 1 11/64”

3/16” X 1 31/64”

3/16” X 1 27/32”

3/16” X 1 21/64”

Fishingneck Engages

1.187”

1.375”

1.750”

2.313”

Reach

JUC-1.093” JUS-1.843”

JUC-1.437” JUS-2.125”

JUC-1.312” JUS-2.187”

JUC-1.437” JUS-2.125”

Made Up Length

13.000”

14.328”

14.875”

14.750”

Set Screw

1/4"-20X3/8 ”

3/8"-18X1/2 ”

7/16"-16X1/2 ”

7/16"-14X1/2 ”

R Pulling Tool

The R Series Pulling Tool is a shear up releasing tool used in pulling subsurface devices, which have external fishingnecks. To accommodate the many different types of devices, the core on the R Series Pulling Tool is made in various lengths and can be changed in the field.

Specifications

Size

13/16”

1¼”

1½”

Fishingneck O.D.

0.875”

1.000”

1.188”

Pin Connection

5/8”-11

5/8”-11

15/16”-10

Max O.D.

1.180”

1.215”

1.425”

Bottom Connection

7/16”-14

3/8”-16

3/8”-16

Shear Pin

3/16” X 63/64”

3/16” X 1”

¼” X 13/16”

Fishingneck

0.875”

1.000”

1.188”

Reach RB

1.296”

1.218”

1.265”

RJ

*

1.843”

2.547”

RS

*

2.125”

1.797”

Made Up Length

12.109”

12.375”

11.500”

Set Screw

¼”-20 X ¼”

¼”-20 X ¼”

5/8”-18 X 5/16”



Size

2”

2½”

3”

Fishingneck O.D.

1.375”

1.375”

2.313”

Pin Connection

15/16”-10

15/16”-10

11/16”-10

Max O.D.

1.765”

2.170”

2.742”

Bottom Connection

½”-13

½”-13

5/8”-11

Shear Pin

5/16” X 1 15/32”

5/16” X 1 53/64”

3/8” X 2 2 5/64”

Fishingneck

1.375”

1.750”

2.313”

Reach RB

1.219”

1.203”

1.297”

RJ

2.547”

2.547”

2.609”

RS

1.984”

1.984”

2.190”

Made Up Length

12.968”

13.125”

15.000”

Set Screw

7/16”-14 X ¼”

3/8”-16 X 3/8”

7/16”-14 X 3/8”

S Pulling Tool

The S Series Pulling Tools is a shear down releasing tool used in pulling subsurface devices, which have external fishingnecks. To accommodate the many different types of devices, the core on the S Series Pulling Tool is made in various lengths and can be changed in the field.

SM Specifications

Size

13/16”

1½”

2”

Fishingneck O.D.

1.188”

1.375”

1.375”

Pin Connection

15/16”-10

15/16”-10

15/16”-10

Max O.D.

1.188”

1.375”

1.765”

Bottom Connection

3/8”-16

3/8”-16

½”-13

Shear Pin

3/16” X 1 3/32”

3/16” X 1 3/32”

5/16” X 1 39/64”

Fishingneck Engages

0.875”

0.875”

1.375”

Reach

1.680”

1.578”

1.640”

Made Up Length

13.000”

12.859”

14.750”

SB/SS Specifications

Size

1¼”

1½”

2”

2½”

3”

Fishingneck O.D.

1.000”

1.188”

1.375”

1.375”

2.313”

Pin Connection

5/8”-11

15/16”-10

15/16”-10

15/16”-10

11/16”-10

Max O.D.

1.219”

1.418”

1.765”

2.175”

2.740”

Bottom Connection

3/8”-16

3/8”-16

½”-13

½”-13

5/8”-11

Shear Pin

3/16” X 1 3/32”

3/16” X 1 17/64”

¼” X 1 39/64”

¼” X 1 63/64”

5/16” X 2 1/8”

Fishingneck Engages

1.000”

1.188”

1.375”

1.750”

2.313”

Reach SB

1.280”

1.297”

1.219”

1.281”

1.500”

SS

*

1.780”

2.031”

2.000”

2.210”

Made Up Length

13.750”

12.469”

14.938”

15.328”

15.313”

C-1 Running Tool

The C - 1 Running Tool is capable of running and landing several types of Backer Style Locks and Plugs.

Specifications

Size

1½”, 1¾”

2”

2½”

3”

Fishingneck O.D.

1.188”

1.375”

1.750”

2.313”

Pin Connection

1 5/16”-10

1 5/16”-10

1 5/16”-10

11/16”-10

Made Up Length

5.875”

6.250”

5.875”

5.750”

Set Screw

¼”-20 X 3/8”

¼”-20 X 3/8”

¼”-20 X 3/8”

¼”-20 X 3/8”

Shear Pins

1/8” X 1 3/8”

3/16” X 1 11/16”

3/16” X 2 1/8”

3/16” X 2 5/8”

Collar Stop Running Tool

The Type F Collar Stop Running Tool is used to set the Type F Collar Stop.

Specifications

Size

2”, 2½”

3”

Fishingneck O.D.

1.375”

1.750”

Pin Connection

1 5/16”-10

1 5/16”-10

Max O.D.

1.500”

2.000”

Steel Pin

2”: ¼” X 1 3/16”

2½”: ¼” X 1½”

¼”X2"

D Running Tool (Collet Type)

The D Running tool is used to run the D Lock and/or DD Bridge Plug.

Specifications

Size

2”

21/2”

3”

Fishingneck O.D.

1.375”

1.750”

1.750”

Pin Connection

1 5/16”-10

1 5/16”-10

11/16”-10

Max O.D.

1.340”

1.750”

2.125”

Made Up Length

12.500”

12.906”

12.875”

Shear Pin

¼” X 1 3/16”

¼” X 1 5/8”

¼”X2”

Set Screw

¼”-20 X ¼”

¼”-20 X ¼”

¼”-20 X ¼”

GA-2 Running Tool

The GA - 2 Running Tool is used in conjunction with the L or

K Kickover Tool to install “1” valves into side pocket mandrels.

Specifications

Fishingneck O.D.

1.188”

Pin Connection

15/16”-10

Made Up Length

3.375”

Roll Pins

1/8” X 7/8”

Shear Pins

1/8” X 7/8”

Max O.D.

1.188”

Stop Running Tool

The G Stop Running Tool is used to run and set the G Stop Anchor.

Specifications

Size

2”

2½”

Fishingneck O.D.

1.375”

1.375”

Pin Connection

15/16”-10

15/16”-10

Made Up Length

30.188”

31.125”

O.D. Slips (Retracted)

1.812”

2.275”

O.D. Slips (Expanded)

2.015”

2.500”

Shear Pin

1/8” X 1 13/16”

1/8” X 2 3/16”

J Running Tool

The J Running Tool is used to run and set the S Lock Mandrel.

Specifications

Size

1¼”

1½”

2”

2½”

3”

Fishingneck

1.000”

1.188”

1.375”

1.375”

2.313”

Pin Connection

5/8”-11

15/16”-10

15/16”-10

15/16”-10

1 1/16”-10

Box Connection

3/8”-16

3/8”-16

½”-13

½”-13

5/8”-11

Max O.D.

1.125”

1.420”

1.625”

2.125”

2.500”

Made Up

2.375”

3.500”

3.688”

3.688”

4.625”

Shear Pins

1/8” X 1 1/16”

1/8” X 1 3/8”

3/16” X 1 9/16”

3/16” X 2 1/16”

1/8” X 1 1/16”

JC-3 Running Tool

The JC - 3 Running Tool is used to run the R or RA Type Latch in the appropriate MM Series Mandrel.

Specifications

Fishingneck O.D.

1.375”

Pin Connection

15/16”-10

Made Up Length

6.188”

Shear Pins

3/16” X 15/8”

Max O.D.

1.750”

(Long)

Fishingneck O.D.

1.375”

Pin Connection

15/16”-10

Made Up Length

12.000”

Shear Pins

3/16” X 15/8”

Max O.D.

1.750”

JK Running Tool

The JK Running Tool, in conjunction with a Kickover Tool, is used to install the BK and BK - 2 Latches in side pocket mandrels.

Specifications

Fishingneck O.D.

1.188”

Pin Connection

15/16”-10

Made Up Length

3.550”

Shear Pins

1/8” X 11/8”

Max O.D.

1.300”

PS Running Tool

The PS Running Tool is used to run and set the PS and PN Lock

Plug Assembly.

Specifications

Size

1¼”

1½”

2”

2½”

3”

Fishingneck O.D.

1.000”

1.188”

1.375”

1.750”

2.313”

Pin Connection

5/8”-11

15/16”-10

15/16”-10

15/16”-10

11/16”-10

Max O.D.

1.188”

1.420”

1.688”

2.000”

2.500”

Made Up Length

5.000”

5.000”

6.500”

6.500”

5.875”

Shear Pins

1/8” X 1 1/8”

1/8” X 1 3/8”

3/16” X 1 5/8”

3/16” X 1 15/16”

3/16” X 2 7/16”

RK-1 Running Tool

The RK - 1 Running Tool is used to run the RK - 1 or RKP Latch in the appropriate MMG Series Mandrel.

Specifications

Fishingneck O.D.

1.188”

Pin Connection

15/16”-10

Made Up Length

6.000”

Shear Pins

1/8” X 1¼”

Max O.D.

1.438”

W Running Tool

The W Running Tool is designed to the B, C, and W Lock Mandrels.

Specifications

Size

11/2”

2” & 21/2”

3”

Fishingneck O.D.

1.188”

1.375”

1.750”

Pin Connection

1 5/16”-10

1 5/16”-10

11/16”-10

Made Up Length

9.343”

10.438”

10.000”

Shear Pin (2)

1/4” X 3/8”

5/16” X 3/8”

5/16” X 1/2”

Engages

0.688”

1.000” & 0.813”

1.500”

Max O.D.

1.375”

1.500”

2.750”

Standing Valve (Type A)

The A Series Equalizing Standing Valves are designed to hold pressure from above for use in intermittent gas lift wells to contain fluid in the tubing during an injection cycle.

Specifications

Size

1¼”

1½”

2"

2½”

Fishingneck O.D.

0.875"

0.875"

1.375"

1.375”

Overall Length

10.500"

10.750"

12.625"

12.875"

Shear Pin

3/16” X 7/8”

3/16” X 7/8”

3/16” X 1 3/8”

3/16” X 1 3/8”

S.S. Ball

¾

¾

1¼"

1½”

No Go O.D.

1.313"

1.480"

1.860"

2.295"

Flow Area

0.135"

0.071"

0.233"

0.282"

Running Tool

1¼" JDC

1¼" JDC

2" JDS

2" JDS

Pulling Tool

1¼" JDC

1¼" JDC

2" JDS

2" JDS

Oficinas Corporativas:



Calle Orbelin Castro Número 356 Colonia Miguel Hidalgo Villahermosa, Tabasco, Código Postal 86126



(993)175 0249 (993)234 3555 (993)350 5312



contacto@alphacs3.com

Consola de depuración de Joomla!

Sesión

Información de perfil

Uso de la memoria

Consultas de base de datos
