Fishing equipment

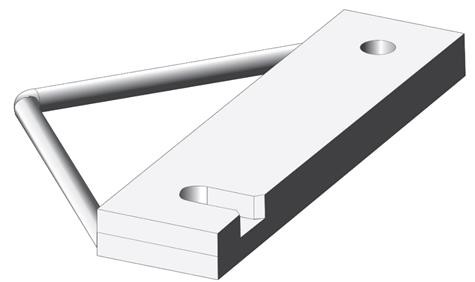

Bar Fishing Clamp

Bull Dog Spear

The Bulldog Spear is a wireline fishing tool designed to catch the internal diameter of a wireline tool or other type “fish” requiring an internal latch.

The Bulldog Spear is made especially for wireline operations and is available with a wide range of hardened and tempered slips to withstand heavy fishing operations

Center Spear

The Center Spear is made by welding barbs on a pointed rod. It is most commonly used when the wire is balled up and stuck in the tubing. It can be driven into the tangled wire to loosen it and facilitate the use of a two prong wire grab for final wire retrieval.

Specifications

Size

2”

2½”

Fishingneck

1.188”

1.188”

Pin Connection

15/16”-10

15/16”-10

Made Up

22.000”

22.000”

Go Devil

The Go Devil is dropped to cut the wireline at the rope socket when the tool string becomes stuck.

Specifications

Size

1¼"

1½"

1¾"

17/8"

Fishingneck O.D.

1.188

1.375"

1.750"

1.750"

Max O.D.

1.250"

1.500"

1.750"

1.875"

Made Up Length



 3'

36.000"

36.000"

36.000"

36.000"
5'

60.000"

60.000"

60.000"

60.000"

Heavy Duty Fishing Magnet

The Heavy Duty Fishing Magnet Tool is a wireline service tool used to magnetically attract and retrieve ferrous debris lost in the well bore.

Specifications

Max O.D.

1 ½”

1 ¾”

2 ¼”

2.700”

Skirted Magnet

The Skirted Magnet is used to remove metal particles and debris from the tubing, which may impede normal wireline operations and prevent tools from functioning properly.

Specifications

Size

1¾"

2"

2¼"

Fishingneck O.D.

1.375

1.375"

1.375"

Max O.D.

1.750"

2.000"

2.250"

Pin Connection

1 5/16”-10

1 5/16”-10

1 5/16”-10

Made Up Length

13.500"

13.500"

13.500"

Wireline Grab (2 prong)

The Two Prong Wireline Grab is used to retrieve broken wire from the tubing string. The arms include welded barbs which catch the wire.

Specifications

Size

1¼"

1½"

1¾"

2"

2½"

3"

Fishingneck O.D.

1.000"

1.188"

1.375"

1.375"

1.375"

1.750"

Max O.D.

1.230"

1.490"

1.740"

1.750"

2.250"

2.625"

Pin Connection

5/8”-11

1 5/16”-10

1 5/16”-10

1 5/16”-10

1 5/16”-10

1 1/16”-10

Made Up Length

23.875"

23.938"

23.938"

23.938"

25.250"

24.500"

Wire Grab (4 prong)

The Four Prong Wireline Grab is used to retrieve broken wire from the tubing string. The arms include welded barbs which catch the wire.

Specifications

Size

2”

2

2½”

Fishingneck O.D.

1.375”

1.375”

1.750”

Max O.D.

1.750”

2.250”

2.625”

Pin Connection

1 5/16”-10

1 5/16”-10

11/16”-10

Made Up Length

20.438”

20.750”

21.000”

Wirefinder Retriever

The Wireline Retriever is designed to retrieve broken or cut slickline from the tubing. It locates and balls the broken wire with the aid of the Split Skirt (located at the bottom of the tool). The wire is then trapped in between the spear point and the Split Skirt. Pulling up on the tool spring wedges, the broken line within the tool and the retrieving process can begin.

Specifications

Size

2-3”

Fishingneck O.D.

1.375”

Max O.D.

1.813”

Pin Connection

1 5/16”-10

Made Up Length

29.938”

Wirefinder Split Skirt

The Wirefinder Split Skirt is used to bend or ball the uppermost part of the wire so that retrieving applications may be used.

Specifications with Center

Mandrel

Fishingneck O.D.

1.375”

1.750”

Max O.D.

1.687”

1.812”

Pin Connection

1 5/16”-10

11/16”-10

Box Connection

1 5/16”-10

11/16”-10

Made Up Length

14.125”

14.125”
Specifications

Size

2"

2½”

3"

Fishingneck O.D.

1.375”

1.375”

1.375”

Max O.D.

1.813”

2.400”

2.740”

Pin Connection

1 5/16”-10

1 5/16”-10

1 5/16”-10

Made Up Length

10.938”

11.313”

10.938”

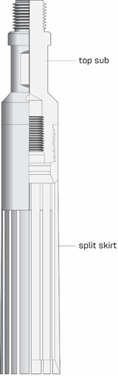

Wirefinder Top Sub

The Wirefinder with Top Sub is used to bend or ball the uppermost part of the wire so that retrieving applications may be used.

Specifications

Size

2"

2½”

3"

Fishingneck O.D.

1.375”

1.375”

1.375”

Max O.D.

1.813”

2.400”

2.740”

Pin Connection

1 5/16”-10

1 5/16”-10

1 5/16”-10

Made Up Length

10.938”

11.313”

10.938”

Wireline Snipper

The wireline snipper is used to cut the wireline at the rope socket. The wireline snipper is assembled around the wireline and dropped from surface. When the snipper contacts the rope socket the lower portion is forced upward, and the center wedge is forced sideways, and cuts the wireline. If the force was insufficient to cut the wireline, a flat bottomed go devil is then placed on the wireline and dropped on top of the snipper to finish the cut. The snipper and any go devils can be fished out of the hole with standard fishing

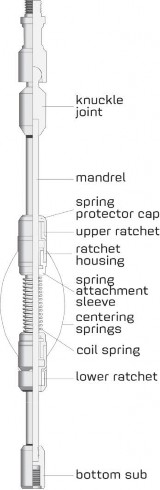

K/AK Kickover Tool

The K/KA Kickover Tools are used in selectively locating "1”

retrievable wireline devices inside pocket mandrels.

K Specifications

Fishingneck O.D.

1.375”

Max O.D.

1.563”

Overall Length

29.718”

Steel Pins (4)

3/16” X 1.375”

Top Pin Thread

1 5/16”-10

Bottom Box Thread

1 5/16”-10

Valve

1”

Mandrel Type

KBM, KBMG, *MM, *MMG
*Requires 4.062” Spacer

AK Specifications

Fishingneck O.D.

1.187”

Max O.D.

1.313”

Overall Length

29.938”

Steel Pins (4)

3/16” X 1.313”

Top Pin Thread

1 5/16”-10

Bottom Box Thread

1 5/16”-10

Valve

1”

Mandrel Type

KBU, KBUW, KA
