Bailers

Drive Down Bailer (Ball Bottom)

This Drive Down Bailer is made of a barrel to hold the sand and a ball type check valve on the bottom. Usually, the very bottom of these bailers are cut off at an angle to make a horseshoe shape. They are used successfully in bailing mud and shale and are loaded merely by running them down in the mud and pulling back out.

Size

1¼"

1½"

1 5/8"

1¾"

Fishingneck O.D.

1.188"

1.188"

1.375"

1.375"

Max O.D.

1.250"

1.500"

1.625"

1.750"

Pin Connection

15/16"-10

15/16"-10

15/16"-10

15/16"-10

Made Up Length

60.938"

60.875"

60.938"

60.938"

Ball

¾"

1"

1"

1 1/8"

Steel Pin

3/16 " X 1¼"

3/ 16" X 1½"

3/16"x1 1/2"

3/16 " X 1¾"

Drive Down Bailer (Flapper Bottom)

This Drive Down Bailer is made of a barrel to hold the sand and a flapper type check valve on the bottom. Usually, the very bottom of these bailers are cut off at an angle to make a horseshoe shape. They are used successfully in bailing mud and shale and are loaded merely by running them down in the mud and pulling back out.

Size

1¼"

1½"

15/8"

1¾"

Fishingneck O.D.

1.188"

1.188"

1.375"

1.375"

Max O.D.

1.250"

1.500"

1.625"

1.750"

Pin Connection

15/16"-10

15/16"-10

15/16"-10

15/16"-10

Made Up Length

59.625"

60.688"

60.563"

61.063"

Dump Bailer

The Dump Bailer is designed to allow a variety of fluids to be dumped within the well on top of any sub-surface device. Wireline Dump Bailers are available in a variety of sizes. The bottom shoe of the Wireline Dump Bailer should always be matched with the down hole device upon which fluid is to be dumped. Bottom assemblies are available with glass shear disc or O-ring seal position.

Junk Basket Bottom

Hydrostatic Bailer

The Hydrostatic Bailer is a wireline service tool used when substances to be bailed cannot be removed by a pump bailer. This sometimes occurs when small metallic particles or other types of debris become lodged on top of the dogs of a lock mandrel, etc.

The Hydrostatic Bailer is made of a cylinder, about 5ft long, with a shear disc mechanism at the bottom. The cylinder is at atmospheric pressure, sealed off from the well pressure with an O-ring. When the obstruction is reached, the disc is sheared by downward jarring. Different skirt sizes can be fitted for various tubing and tool sizes. Brass shear discs are available in different thicknesses for various well pressures.

Sample Bailer

The Sample Bailer is normally attached to the bottom of a Tubing End Locator to retrieve samples of fluids and solids from the well bottom. This tool can be modified to accept a Drive down Fishingneck.

Specifications

Size

1"

1¼"

1½"

15/8"

1¾"

Fishingneck

1.000"

1.188"

1.188"

1.375"

1.375"

Max O.D.

1.000"

1.250"

1.500"

1.625"

1.750"

Pin Connection

5/8"-11

15/16"-10

15/16"-10

15/16"-10

15/16"-10

Made Up

22.250"

22.563"

23.625"

23.688"

23.688"

Ball

5/8"

3/4"

7/8"

1"

1¼"

Steel Pin

1/8" X 1"

3/16" X 1¼"

3/16" X 1½ "

3/16" X 15/8"

3/16" X 1¾"

One Piece Sand Bailer

The Bailer is a wireline service tool used to remove sand, mud, salt, or small pieces of junk from the tubing or casing. The Sand Bailer is also used to clear debris which has settled on top of sub-surface equipment, preventing the recovery of the equipment by regular wireline operations.

The Sand Bailer is a pump-type tool which operates on the principle of a conventional lift pump with piston. The Sand Bailer consists of a piston and check valve encased in an outer cylinder. At the lower end of the bailer, there is a ball check valve or a flapper-type valve, which allows sand and debris to enter the tube. By lightly stroking up and down with the wireline tool string, the bailer acts to suck sand or debris into the cylinder through the ball or flapper bottom and trapping the substances inside the tube.

Various bottom shoe sizes and configurations, as well as extension tubes for the Sand Bailer, are available upon request.

Sizes

1" O.D.

15/8" O.D.

21/8" O.D.

1¼" O.D.

1¾" O.D.

2¼" O.D.

1½" O.D.

2" O.D.

3" O.D.

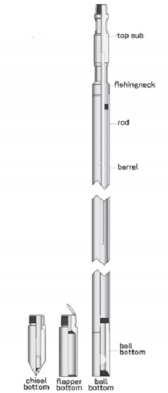

Two Piece Sand Bailer

The Sand Bailer is a pump action type bailer designed to remove sand and small debris in the tubing string, through the upward stroking motion of the pump section. Sand and debris are held in the load barrel through the use of different style check bottoms.

A large percentage of wireline service involves sand bailing prior to the actual pulling or setting of subsurface flow controls.

Size

1"

1¼"

13/8"

11/2"

1¾"

2"

Fishingneck O.D.

1.000"

1.188"

1.188"

1.188"

1.375"

1.375"

Max O.D.

1.000"

1.250"

1.375"

1.500"

1.750"

2.000"

Pin Connection

5/8"-11

15/16"-10

15/16"-10

15/16"-10

15/16"-10

15/16"-10

Ball Length (o)

144.875"

146.688"

146.438"

146.438"

147.500"

112.500"

Ball Length (c)

108.875"

110.688"

110.438"

110.438"

111.500"

112.500"

Flapper Length

144.563"

150.000"

145.125"

146.250"

146.625"

146.625"

Flapper Length

108.563"

114.000"

109.125"

110.250"

110.625"

110.625"

Plunger Stroke

36.000"

36.000"

36.000"

36.000"

36.000"

36.000"

Ball (Piston)

3/8"

½"

½"

½"

5/8"

5/8"

Ball

5/8"

¾"

¾"

1"

11/8"

1¼"

Coarse Thread

*

3/16" X 1¼"

*

3/16" X 11/2"

3/16" X 13/4"

*

Fine Thread

3/16" X 1"

¼" X 1¼"

3/16" X 13/8"

¼" X 1½"

¼" X 1¾"

3/16" X 2"

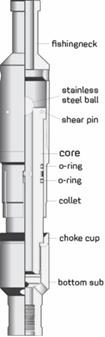

Circulating Plug (Type A)

The Type A Circulating Plug is a removable check valve that can be installed below a perforation. It may also be used to test the tubing from above.

Size

1½"

2"

2½"

3"

Fishingneck O.D.

1.188"

1.375"

1.375"

2.313"

Overall Length

12.750"

14.125"

15.625"

17.563"

Shear Pin

1/8" X 5/8"

1/8" X 13/8"

1/8" X 1½"

3/16" X 15/8"

Stainless Steel

¾"

7/8"

7/8"

15/8"

Flow Area (sq. in.)

0.135"

0.159"

0.159"

0.280"

Bottom Thread

1 5/16"-10

1 5/16"-10

1 5/16"-10

None
