Miscellaneous

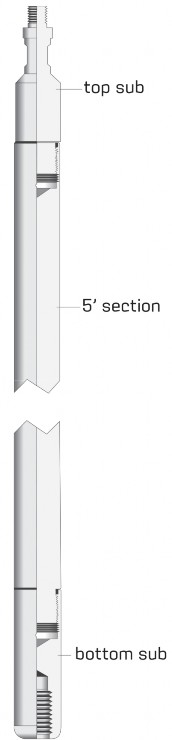

Aluminum Dummy

Specifications

13/8” X 20’ Assembly

111/16” X 20’ Assembly

21/16” X 20 Assembly

21/8” X 20’ Assembly

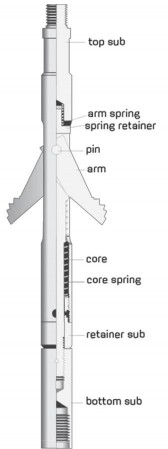

Anti-Blow Up Tool

The Anti-Blow Up Tool is installed in the tool string above the Bottom Hole Pressure equipment. The weight of the BHP equipment will keep the arm grabs on the Anti-Blow Tool retracted. A sudden surge of pressure from below forces the weight of the BHP equipment upward upon the Anti-Blow Tool. The spring loaded dog grabs expand to grab the inner wall of the tubing and prevent the tool string from being blown up in the tubing.

Specifications

Fishingneck O.D.

1.188”

Max O.D.

1.250”

Pin & Box Connections

15/16”-10UN

Dog Grabs

1¼”-3” Tubing

Steel Lock Pin

1/8” X 7/8”

Crossover Subs

The Crossover Sub is designed to connect components of the tool string that have different size thread connections.

Specifications

5/8” SR Pin X ¾” SR Box

¾” SR Pin X 5/8” SR Box

Amerada Pin (¾”-16) X 5/8” SR Box

Amerada Box (¾”-16) X 5/8” SR Pin

5/8 SR Box X 5/8” SR Box

5/8” SR Pin X 5/8” SR Pin

¾” SR Box X ¾” SR Box

¾” Sr Pin X ¾” SR Pin

¾” SR Pin X 7/8” SR Box

7/8” SR Pin X ¾” SR Box

5/8” SR Pin X 5/8” SR Box

Pinning Tool

Releasing tool

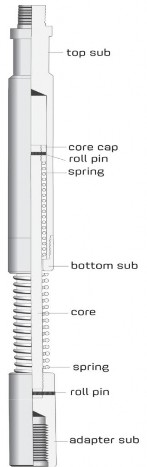

Shock Absorber

The Shock Absorber is used to protect pressure and temperature recording equipment from the jarring action resulting from setting and retrieving the accompanying locking mandrel.

The Shock Absorber has two separate springs which receive both upward and downward jarring shock.

Specifications

Size

1¼”

1½”

1¾”

Fishingneck

1.188”

1.375”

1.750”

Max O.D.

1.250”

1.500”

1.750”

Pin Connection

15/16”-10UN

15/16”-10UN

11/16”-10UN

Box Connection

15/16”-10UN

15/16”-10UN

11/16”-10UN

Roll Pin

1/8” X 1½”

1/8” X 1½”

1/8” X 1¾”

Roll Pin

1/8” X 29/32”

1/8” X 11/32”

1/8” X 15/32”



Star Drill

Star Drills are used similarly to broaches, to clean up excess scale and deposits within the well

Swab Mandrel

The Swab Mandrel is used to manipulate the well fluid in an effort to create an upward flow.

Swab Mandrel Specifications

Size

2”

2½”, 3”

Fishingneck O.D.

1.375”

1.375”

Thread Connection

15/16”-10

15/16”-10

Overall Length

22.250”

22.250”

Swab Cup Specifications

Size

2”

2½”

3"

Fishingneck O.D.

1.960”

2.390”

2.957”

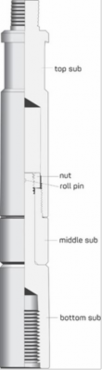

Swivel Joint

The Swivel Joint is designed to assist in the changing of components in the wireline tool string. The swivel design allows the operator to change our long sections without having to physically rotate them. The swivel joint also allows the tool string to more freely spin and rotate down hole to prevent line twist.

Specifications

Size

1¼”

1½”

111/16”

1¾”

Max O.D.

1.250”

1.500”

1.688”

1.750”

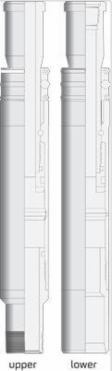

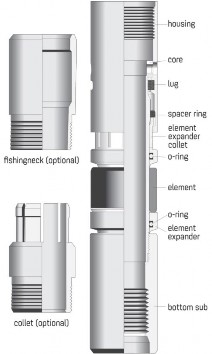

G Packoff

The Type G Packoff is used to straddle and seal off holes in the tubing. The upper and lower Type G Packoffs are usually joined by spacer pipe. Upper and lower tubing stops are used to keep the packoff assemblies in the locked position. In special applications, an upper or lower can be used as a tubing plug in situations where, during well completion, landing nipples were not installed.

Specifications

Size

2”

2 ½”

3”

Upper Connection

15/8”-12

21/16”-12

2½”-12

Lower Connection

1”-10RD

1 ½”-10RD

2”-10RD

Max O.D.

1.840”

2.275”

2.695”

Minimum I.D.

1.063”

1.500”

1.672”

Fishingneck

I.D. (Optional)

1.375”

1.810”

2.310”

Tubing Packoffs
