Shifting Tools

WPSRR/WPSXX Prong

Running and equalizing prongs are commonly screwed into running and pulling tools to perform functions necessary in manipulating subsurface devices.

Size

1.710”

1.710”

1.781”/2.125”

1.781”/2.125”

Pulling

Running

Pulling

Running

Thread Connections

½”-13

3/8”-16

½”-13

½”-13

O.D.

0.715"

0.712”

0.870”

0.865”

Overall Length

12.438”

4.844”

12.625”

5.225”

RR Specifications

Size

2.188”/2.313”

2.188”/2.313”

2.562”

2.562”

Pulling

Running

Pulling

Running

Thread Connections

5/8”-11

5/8”-11

5/8”-11

5/8”-11

O.D.

1.093”

1.109”

1.300”

1.340”

Overall Length

13.939”

5.750”

12.813”

5.281”

X Specifications

Size

1.500”

1.500”

1.625”

1.625”

1.875”

Pulling

Running

Pulling

Running

Pulling

Thread Connections

½”-13

3/8”-16

½”-13

3/8”-16

½”-13

O.D.

0.715"

0.712”

0.715”

0.712”

0.969”

Overall Length

12.438”

4.844”

12.438”

4.844”

12.250”

Size

1.875”

2.313”

2.313”

2.750”/2.813”

2.750”/2.813”

Running

Pulling

Running

Pulling

Running

Thread Connections

½”-13

5/8”-11

5/8”-11

5/8”-11

3/4”-10

O.D.

0.962”

1.300”

1.340”

1.710”

1.710”

Overall Length

4.939”

12.813”

5.125”

13.000”

5.500”

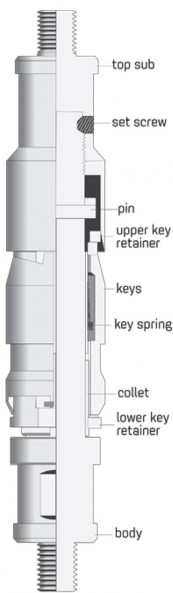

B Shifting Tool

The B Shifting Tool is designed to selectively locate and shift most sliding side door sleeves. This is accomplished by the B Shifting Tool keys engaging the SSD inner sleeve, and depending on the direction the tool is run, up or down, the sleeve is shifted.

Specifications

Collar Stop

The Collar Stop is designed to locate the collar recess of API upset and non-upset tubing. By lowering the stop to the desired depth and lifting upward, the latch springs are tripped allowing the stop arms to expand into the collar recess. Downward jarring on the inner mandrel pushes it down behind the collar stop arms locking them into place in the collar recess.

Specifications

Size

2”

2½”

3”

Min. I.D.

0.875”

1.125”

1.625”

Fishingneck O.D.

1.375”

1.750”

2.313”

Running Tool

2½” F

2½” F

3” F

Pulling Tool

2” JDC

2½” JDC

3” JDC
