Stops

Collar Stop

The Collar Stop is designed to locate the collar recess of API upset and non-upset tubing. By lowering the stop to the desired depth and lifting upward, the latch springs are tripped allowing the stop arms to expand into the collar recess. Downward jarring on the inner mandrel pushes it down behind the collar stop arms locking them into place in the collar recess.

Specifications

Size

2”

2½”

3”

Min. I.D.

0.875”

1.125”

1.625”

Fishingneck O.D.

1.375”

1.750”

2.313”

Running Tool

2½” F

2½” F

3” F

Pulling Tool

2” JDC

2½” JDC

3” JDC

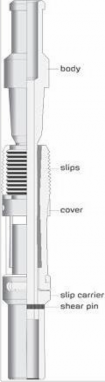

Tubing Stop (Type A)

The Type A Tubing Stop is designed for use in integral joint tubing strings where a coupling recess is not available. It is used primarily as an anchoring device in packoff applications.

Specifications

Size

11/4”

1½”

2”

21/16”

2½”

3”

Min I.D.

0.438”

0.625”

0.703”

0.625”

1.047”

1.500”

Fishingneck O.D.

0.875”

1.188”

1.375”

1.188”

1.750”

2.313”

Max O.D. Slips Retracted

1.234”

1.438”

1.750”

1.438”

2.188”

2.719”

Running Tool

11/4” JDC

1½” JDC

2” JDC

1½” JDC

2½” JDC

3” JDC

Pulling Tool

11/4” JDC

1½” JDC

2” JDC

1½” JDC

2½” JDC

3” JDC

Shear Pin Size

1/8”

3/16”

3/16”

3/16”

1/8”

3/16”

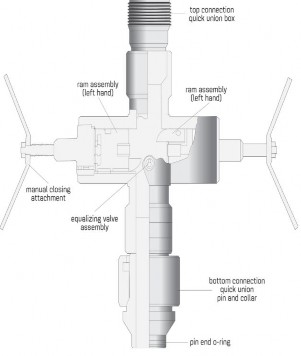

Wireline Valves

Wireline Valves give positive protection against blowouts when operating with wireline or small tubing in well service or similar work. these units are light in weight in comparison with other simialr preventers, yet are able to withstand high well pressure.

Measuring Head Assembly

WPS manufactures the entire measuring head assembly including both the 8" and 16" styles. We have all the replacement parts necessary to repair any measuring head. In addition, WPS can assemble your measuring head for cable drive or direct drive.
