Surface Equipment

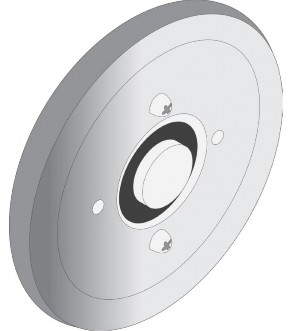

Counter Wheels

The Counter Wheel is a replacement part for the measuring head. Line sizes can be specified from 0.092" and up.

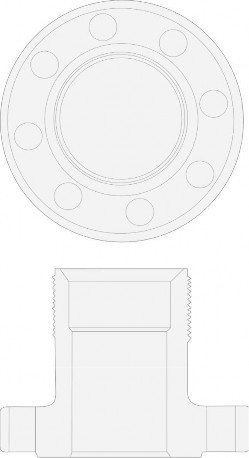

Flanges

Grease Injection Control Head

The Grease Injection Control Head is deisgned to create a seal around a moving wireline, allowing intervention access to wells under pressure.

Lubricator

The Lubricator is a device to allow the weight bars and equipment you are attempting to lower into the well to be first subjected to well pressure.

Specifications

5,000 PSI Lubricator Assembly w/ 2½” Q.U.

10,000 PSI Lubricator Assembly w/ 2½” Q.U.

2” X 8’ w/ 2½” Union

2” X 8’ w/ 2½” Union

2½” X 8’ w/ 2½” Union

2½” X 8’ w/ 2½” Union

3” X 4’ w/ 2½” Union

3” X 4’ w/ 2½” Union

3” X 8’ w/ 2½” Union

3” X 8’ w/ 2½” Union

2 “ RD Bleed Off Sub

3½” 8RD Bleed Off Sub

Lubricator Clamp

Pressure Wheels

The Pressure Wheel is a replacement part for the measuring head. Line sizes are available from 0.092" and up.

Quick Union

Quick Unions are screwed onto Pup-Joints to form a Lubricator. They are used to attach sections of lubricator together to accommodate the required tool string length. The Quick Union is designed to hold pressure using an o-ring type seal.

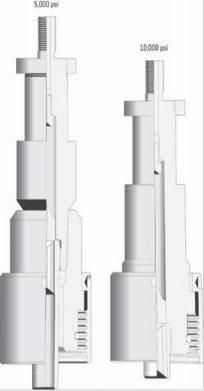

Stuffing Boxes

Stuffing Boxes are either manual or 5000psi, 10,000psi , and 15,000psi hydraulic. WPS can customize your Staff Assembly accoring to your specifications, including any type of Stuffing Box Packing, any type of

Glands and the wheel size of your choice.

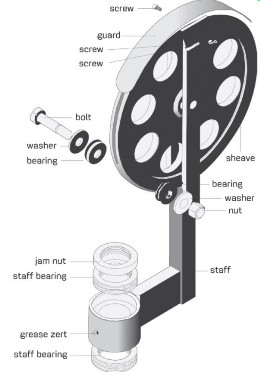

Staff Assembly

The Staff Assembly is designed to alter the direction of the wireline into the stuffing box using the same wheel as the Hay Pulley.

Specifications

Size

7”

12”

16”

Hydraulic Packing Nut

The Stuffing Box Hydraulic Packing Nut allows you to operate the packing nut from a remote location for convenience as well as a safer way to packoff the wireline.

Tree Connection

Tree Connections are used to connect the bottom of the wireline valve to the connection on top of the tree.

N Test Tool

The N Test Tool is used to pressure test the tubing above the nibble in which it is set. The tool is designed to hold pressure only from above, allowing a small amount of flow from beneath.

Specifications

Size

2”

2½”

3”

Nut O.D. (Fishingneck)

1.375”

1.375”

2.313”

Overall Length

10.281”

9.969”

11.000”

No Go O.D.

1.865”

2.300”

2.865”

Bottom Thread

11/8”-12

111/32”-14

17/8”-12

Running Tool

2” H

2” H

3” H

Pulling Tool

2” RB

2” RB

3” RB

Roll Pin

1/8” X 13/16”

1/8” X 13/16”

1/8” X 2”
