Tool String

Blind Box

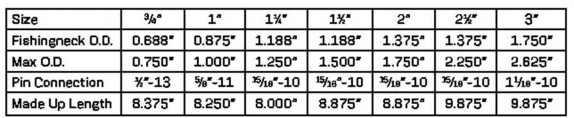

The Blind Box is a one-piece wireline tool made from solid bar alloy steel that has a fishingneck and threads on one end to facilitate attachment to the wireline string and a flat bottom on the other end for delivering blows. The Blind Box is actually used as a downhole “hammer,” striking objects or debris with jarring force.

Specifications

Diamond Broach

The Broaching Tool is a wireline service tool designed to remove excess cement, salt, barium, or other deposits that have accumulated on the tubing wall, restricting the I.D. and flow area.



Paddle Broach

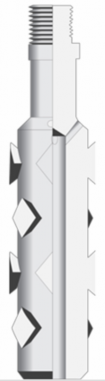

Pineapple Broach

The Pineapple Broach is used to cut burrs in the tubing I.D. caused by perforation, rust, bent tubing, etc.

Specifications

Size

2”

2½”

3”

Fishingneck

1.375”

1.375”

1.750”

Max O.D.

1.910”

2.347”

2.897”

Pin Connection

15/16”-10

15/16”-10

15/16”-10

Made Up Length

11.500”

11.500”

15.000”

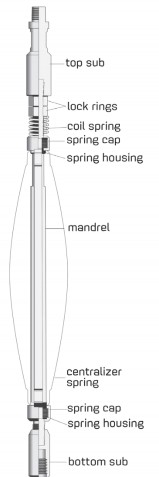

Adjustable Bow String Centralizer

The Adjustable Wireline Centralizer comes in two models, one with a range from 1½” to 8½” O.D., and one with a range from 17/8” to 9” O.D. Through the use of an adjustment nut and coil spring, the O.D. of the centralizer springs can be adjusted to fit your specific application.

Specifications

Size

1½”

17/8”

Fishingneck O.D.

1.375”

1.375”

Pin & Box Connections

15/16”-10

15/16”-10

Max O.D.

1.500”

1.875”

Bow Spring Range

1½” TO 8½”

1½” TO 9”

Made Up Length

45.750”

45.750”

Locking Set Screws

(3) ¼”-20 X ¼”

(3) ¼”-20 X ¼”

Adjusting Set Screws

(2) ¼”-20 X 3/16”

(2) ¼”-20 X 3/16”

Steel Centralizer

The Tubing Centralizer is used to help keep the tool string in the center of the tubing. The diameter is machined near the tubing drift specification. Fluid bypass slots are machined to assist the tool string downhole.

Specifications

Size

2”

2½”

3”

Fishingneck O.D.

1.375”

1.375”

1.750”

Max O.D.

1.843”

2.281”

2.718”

Pin & Box Connections

15/16”-10

15/16”-10

11/16”-10

Made Up Length

10.000”

10.000”

10.000”

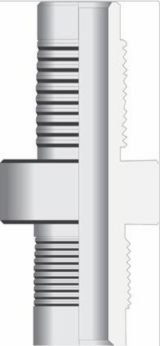

Teflon Centralizer

The Teflon Centralizer is used to help keep the tool string in the center of coated tubing. The diameter is machined near the tubing drift specification. Fluid bypass slots are machined to assist the tool string downhole.

Specifications

Size

2”

2½”

3”

Fishingneck O.D.

1.375”

1.375”

1.750”

Max O.D.

1.843”

2.281”

2.718”

Pin & Box Connection

15/16”-10

15/16”-10

11/16”-10

Made Up Length

11.500”

11.500”

12.000”

Set Screw

¼”-20 X ¼”

¼”-20 X ¼”

¼”-20 X 3/8”

Check Tool Set

These tools are used to insure that X and R Locking Mandrels have properly been set in the appropriate landing nipple. A sheared pin in the tool, once it has been run, indicates that the lock has been properly set. It is lowered downhole to the locking mandrel using standard wireline tools.

Specifications

Size

1½”, 1.710”

2”

2.125”

2.188”

2½”, 2.562”

3”

Fishingneck O.D.

1.188”

1.375”

1.375”

1.375”

1.375”

1.750”

Thread

15/16”-10

15/16”-10

15/16”-10

15/16”-10

15/16”-10

15/16”-10

Brass Shear Pin

3/16” X 1¼”

¼” X 15/8”

¼” X 15/8”

¼” X 17/8”

¼” X 17/8”

¼” X 2½”

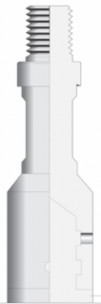

Impression Block

The Impression Block consists of a steel housing with a lead insert. Impression Blocks are used during fishing operations to determine the shape, size, and position of the object being fished.

Specifications

Size

3/4”

1”

1¼”

1½”

3”

2½”

3”

Fishingneck O.D.

0.688”

0.875”

1.188”

1.188”

1.375”

1.375”

1.750”

Max O.D.

0.750”

1.000”

1.250”

1.500”

1.750”

2.250”

2.625”

Pin Connection

½”-13

5/8”-11

15/16”-10

15/16”-10

15/16”-10

15/16”-10

11/16”-10

Made Up Length

4.875”

5.250”

5.500”

5.500”

6.000”

6.000”

6.000”

Tubular Jars

The Tubular Jar, through wireline manipulation, can be used to provide an upward or downward impact. The intensity of the jarring impact depends on the weight of the wireline stem above the jar, the stroke length of the jar, and the density of the well fluid. The perforated body of the Tubular Jar allows fluid bypass, reducing the effects of the well fluid density on the jarring impact.

Specifications

Size

3/4”

7/8”

1”

1¼”

Fishingneck O.D.

0.688”

0.750”

0.875”

1.188”

Max O.D.

0.750”

0.875”

1.000”

1.250”

Pin & Box Connections

½”-13

½”-13

5/8”-11

15/16”-10

Made Up Length (Closed)

20.813”

20.813”

31.438”

32.563”

Made Up Length

34.813”

34.813”

51.438”

52.563”

Steel Locking Pin

1/8” X 3/4”

1/8” X 7/8”

1/8” X 1”

1/8” X 1¼”

Size

1½”

13/4”

17/8”

21/8”

Fishingneck O.D.

1.375”

1.750”

1.750”

1.750”

Max O.D.

1.500”

1.750”

1.875”

2.125”

Pin & Box Connections

15/16”-10

11/16”-10

11/16”-10

11/16”-10

Made Up Length (Closed)

32.563”

32.563”

32.563”

32.688”

Made Up Length

52.563”

52.563”

52.563”

52.688”

Steel Locking Pin

1/8” X 1½”

1/8” X 13/4”

1/8” X 17/8”

1/8” X 21/8”

Knuckle Jar

The Knuckle Jar provides a range of motion that helps to make the tool string more flexible. Because the Knuckle Jar has a stroke, it can also be used for light jarring.

Specifications

Size

1¼”

1½”

17/8”

Fishingneck O.D.

1.188”

1.375”

1.750”

Max O.D.

1.250”

1.500”

1.875”

Pin & Box Connections

15/16”-10

15/16”-10

11/16”-10

Made Up Length







3" Closed

13.500"

13.500"

13.500"

Open

16.500"

16.500"

16.500"

5" Closed

15.500"

15.500"

15.500"

Open

20.500"

20.500"

20.500"

Roll Pins

1/8” X 1¼”

1/8” X 1½”

1/8” X 17/8”

Knuckle Joint

The Knuckle Joint is designed for applications where tool string rotation and/or defection is required. It is most useful in fishing operations where the pulling tool or overshot requires flexibility to properly locate the fish.

Specifications

Size

3/4”

7/8”

1”

1¼”

Fishingneck O.D.

0.688”

0.688”

1.000”

1.250”

Max O.D.

0.750”

0.875”

1.000”

1.250”

Pin & Box Connection

½”-13

½”-13

5/8”-11

15/16”-10

Made Up Length

4.438”

4.438”

5.250”

7.313”



Size

1½”

13/4”

17/8”

2½”

Fishingneck O.D.

1.500”

1.750”

1.750”

2.313”

Max O.D.

1.500”

1.750”

1.875”

2.500”

Pin & Box Connection

15/16”-10

11/16”-10

11/16”-10

11/16”-10

Made Up Length

9.000”

9.125”

9.125”

11.313”

Nipple Locator

Specifications

Sizes

1.875”

2.313”

2.750”

2.813”

No Go Sub

The Type No Go Sub is used in conjunction with the WPS Locking Mandrel when a Type N No Go Mandrel is to be used. The N No Go Sub is screwed on to the locking section of the WPS Mandrel just below the packing portion to convert into the Type N No Go Mandrel.

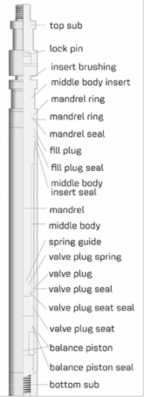

Hydraulic Oil Jars

The Hydraulic Oil Jar is designed to give the operator control over intensity during jarring. This is done by resetting the jar following each cycle.

Specifications

Size

1 ¼”

1 ½”

1 ¾”

1 7/8”

2 1/8”

Paraffin Cutter (Gauge Ring)

The Paraffin Cutter (Gauge Ring) has many different purposes. It can be used to calibrate tubing, locate landing nipples, and remove paraffin and other deposits from the tubing wall

Specifications

Size

1¼”

1½”

13/4”

Fishingneck O.D.

1.000”

1.188”

1.188”

Max O.D.

1.240”

1.483”

1.750”

Pin Connection

5/8”-11

15/16”-10

15/16”-10

Made Up Length

6.500"

6.500"

8.000"

Size

2”

2½”

3”

Fishingneck O.D.

1.375”

1.375”

1.750”

Max O.D.

1.906”

2.343”

2.906”

Pin Connection

15/16”-10

15/16”-10

11/16”-10

Made Up Length

8.500"

8.500"

8.500"

Paraffin Scratcher

The Paraffin Scratcher is designed to scratch paraffin and scale from the I.D. of tubing by placing pieces of wireline, cut to specific lengths and threaded through a number of spirally drilled holes, along its 5/8” diameter body and running it up and down inside the tubing.

Specifications

Size

2”

2½”

3”

Fishingneck O.D.

1.188”

1.188”

1.188”

Pin Connection

15/16”-10

15/16”-10

15/16”-10

Made Up Length

22.000”

22.000”

22.000”

Brass Wedge Rope Socket

The Brass Wedge Rope Socket is used as a means of connecting the wireline to the wireline tool string. The line is run through the body and around the brass wedge. With the line set in the provided groove of the brass wedge, the line and brass wedge are pulled tightly into the taper of the body. Recommended for use with 0.092”- 0.187” line.

Specifications

Size

1¼”

1½”

1 3/4”

1 7/8”

Fishingneck O.D.

1.188”

1.375”

1.750”

1.750”

Max O.D.

1.250”

1.500”

1.750”

1.750”

Thread

15/16”-10

15/16”-10

11/16”-10

11/16”-10

Overall Length

5.250”

4.813”

5.125”

5.125”

Multi-Strand Rope Socket

The Multi-Strand Rope Socket is the means used to attach multi- strand lines with the wireline tool string. The slip type rope socket is designed for use with small stranded lines up through 3/16” diameter.

Specifications

Size

1¼”

1½”

13/4”

17/8”

Fishingneck O.D.

1.188”

1.375”

1.750”

1.875”

Max O.D.

1.250”

1.500”

1.750”

1.875”

Thread

15/16”-10

15/16”-10

11/16”-10

11/16”-10

Overall Length

8.750”

9.000”

9.188”

9.188”

Set Screw

3/8”-16 X 15/16”

3/8”-16 X 15/16”

3/8”-16 X 15/16”

3/8”-16 X 15/16”

Single Strand Rope Socket

The Single Strand Rope Socket is the means used to attach single strand wireline with the wireline tool string. The spool type rope socket is recommended for use with 0.066”- 0.092” line.

Specifications

Size

3/4”

7/8”

1”

1¼”

Fishingneck O.D.

0.688”

0.750”

1.000”

1.188”

Max O.D.

0.750”

0.875”

1.000”

1.250”

Thread Connection

½”-13

½”-13

5/8”-11

15/16”-10

Length

5.688”

5.688”

5.688”

6.188”

Size

1½”

13/4”

17/8”

21/8”

Fishingneck O.D.

1.375”

1.750”

1.750”

1.750”

Max O.D.

1.500”

1.750”

1.875”

2.125”

Thread Connection

15/16”-10

11/16”-10

11/16”-10

11/16”-10

Length

6.188”

7.000”

7.000”

7.000”

Stem

The Wireline Stem, also called a weight bar, is used to add weight to the wireline tool string to counteract the wellbore pressure allowing the easy descent of the tool string. It is also used to increase the effectiveness of jarring operations.

Specifications

Size

3/4

1

1¼”

1½”

13/4”

17/8”

21/8”

Fishingneck O.D.

0.688”

0.875”

1.188”

1.375”

1.750”

1.750”

1.750”

Max O.D.

0.750”

1.000”

1.250”

1.500”

1.750”

1.750”

2.125”

Pin & Box

½”-13

5/8”-11

15/16”-10

15/16”-10

11/16”-10

11/16”-10

11/16”-10

Made Up Length





2"

24.000"

24.000

24.000

24.000

24.000

24.000"

24.000"

3"

36.000

36.000

36.000

36.000

36.000"

36.000"

36.000"

5"

60.000

60.000

60.000

60.000

60.000"

60.000"

60.000"

Leaded Stem

The Wireline Stem, also called a weight bar, is used to add weight to the wireline tool string to counteract the wellbore pressure allowing the easy descent of the tool string. It is also used to increase the effectiveness of jarring operations.

Specifications

Size

1”

1¼”

1½”

1”

17/8”

Fishingneck O.D.

1.000”

1.188”

1.375”

1.375”

1.875”

Max O.D.

1.000”

1.250”

1.500”

1.750”

1.875”

Pin & Box Connections

5/8”-11

15/16”-10

15/16”-10

15/16”-10

11/16”-10

Made Up Length

2"

24.000"

24.000"

24.000"

24.000"

24.000"

3"

36.000"

36.000"

36.000"

36.000"

36.000"

5"

60.000"

60.000"

60.000"

60.000"

60.000"

Roller Stem

The Roller Stem is incorporated into the wireline tool string to facilitate maneuverability within the tubing. The rollers on the stem also allow the tool string to move easier through deviated tubing. The wheels are available in steel and teflon.

Specifications

Size

1¼”

1½”

13/4”

17/8”

Fishingneck O.D.

1.188”

1.375”

1.750”

1.750”

Max O.D.

1.250”

1.500”

1.750”

1.875”

Pin & Box Connections

15/16”-10

15/16”-10

11/16”-10

11/16”-10

Rollers O.D.

1.438”

1.844”

2.625”

2.625”

Roll Pin

3/8” X 1¼”

3/8” X 1½”

3/8” X 13/4”

3/8” X 13/4”

Made Up Length

2"

24.000"

24.000"

24.000"

24.000"

3"

36.000"

36.000"

36.000"

36.000"

5"

60.000"

60.000"

60.000"

60.000"

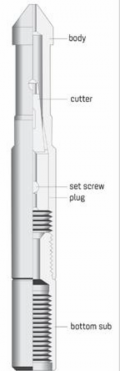

Tubing End Locator

The Tubing End Locator is used to determine the depth of the tubing through the use of a spring-loaded finger. The spring-loaded finger catches the end of the tubing when pulled upward, registering a reading on the surface weight indicator.

Specifications

Size

1¼”, 1½”

2”, 2½”

3”

Fishingneck O.D.

1.188”

1.375”

1.375”

Max O.D.

1.250”

1.750”

2.500”

Pin Connection

15/16”-10

15/16”-10

15/16”-10

Made Up Length

10.625

10.438”

10.438”

Shear Pin

3/16” X 1¼”

3/16” X 13/4”

3/16” X 13/4”

Tubing Swedge

The Tubing Swedge is used to bend out irregular places and other obstructions within the tubing string. It is equipped with a central bore and angled fluid ports for ample fluid bypass.

Specifications

Size

1¼”

1½”

2”

2½”

3”

Fishingneck O.D.

1.000”

1.188”

1.375”

1.375”

1.750”

Max O.D.

1.230”

1.531”

1.906”

2.343”

3.870”

Pin Connection

5/8”-11

15/16”-10

15/16”-10

15/16”-10

15/16”-10

Made Up Length

6.250”

7.000”

8.000”

9.250”

9.250”
